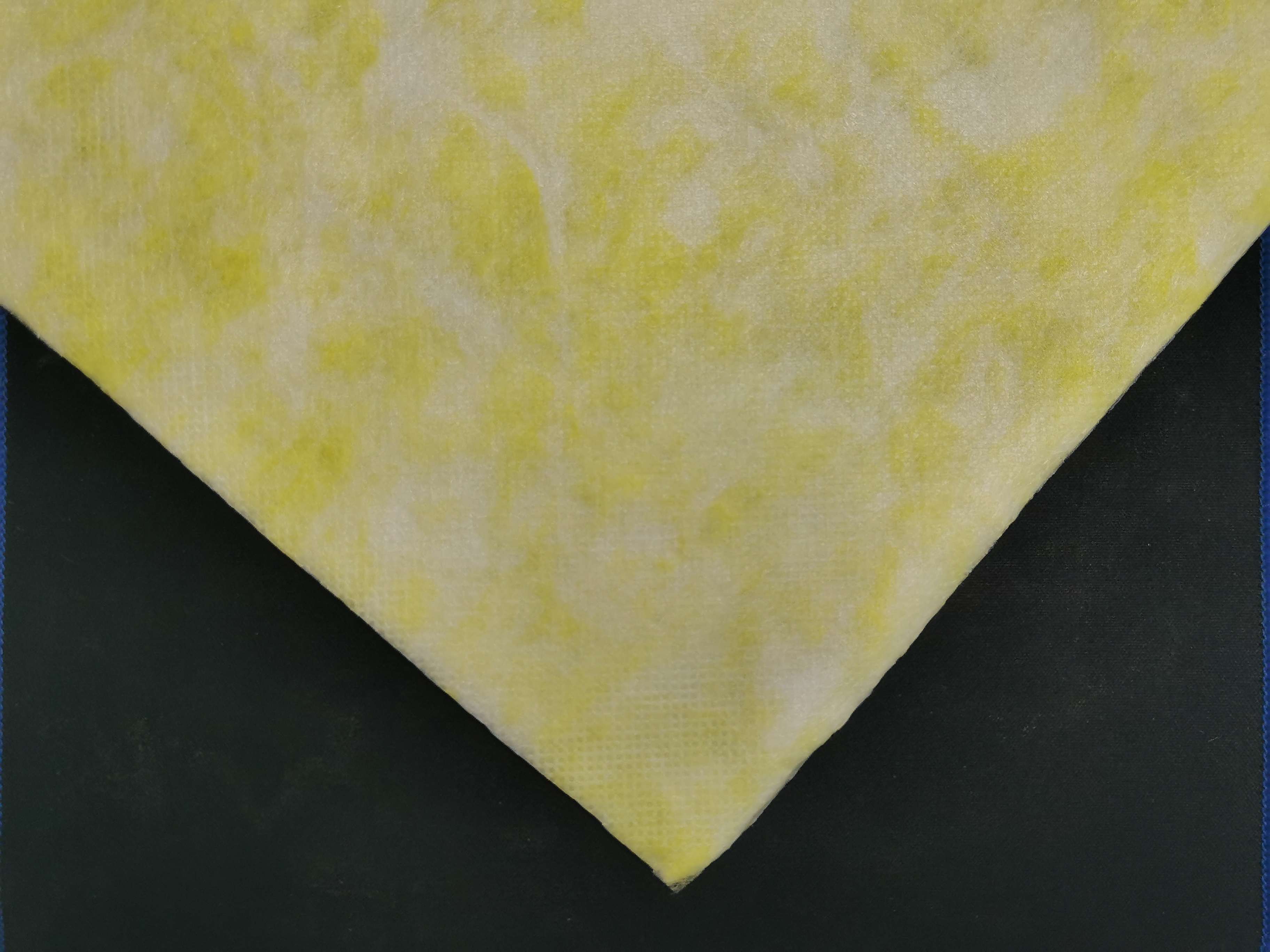

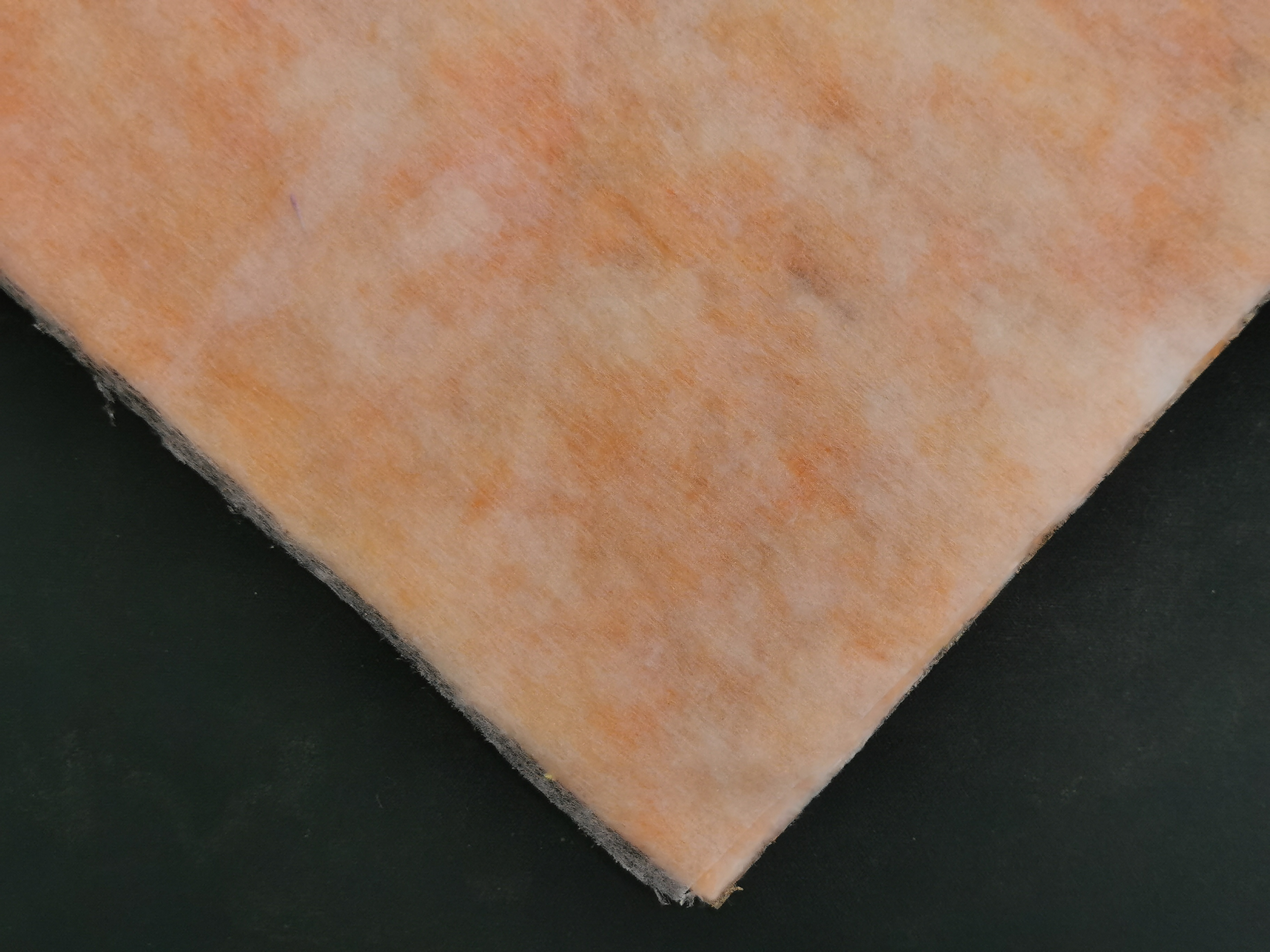

Glass Fiber Pocket Filter Media Roll

Features

Long-period;
High dust holding capacity and low pressure;
Three-dimensional microporous structure, high porosity, large filtering area;
Stable efficiency;
High temperature resistance;
No formaldehyde and environmental protection;
Good insulation, no static electricity;
Meet EN779-2012 and ISO 16890-2016 standard.

Applications

The raw materials of bag filters and pleated panel filters in general ventilation system are widely used in hot air filtration environments, which can effectively remove dust and resist chemical erosion from harmful fumes.

Send inquiry

Technical Parameters

Specifications

Material	Superfine glass fiber	Instantaneous temperature tolerance	170℃
Temperature resistance	150℃	Moisture resistance(relative humidity)	≤100%

Model	size	Weight (g/㎡)	I.N.P (Pa)	Thickness (mm)	EFF. ISO16890:2016		EFF.EN779(%)		Filtration Class	Color
RT-GF05	Single size：200m Double side：100m	70士5	≤30	2.5±0.5	e PM10	50%-65%	≥1μm	≥45	F5	Light yellow
RT-GF06	Single size：200m	70士5	≤40	2.5±0.5	e PM2.5	50%-60%	≥1μm	≥65	F6	Apricot yellow
RT-GF07	Double side：100m	75士5	≤70	2.5±0.5	e PM1	50%-70%	≥1μm	≥85	F7	Light pale
RT-GF08	Single size：200m	80士5	≤100	2.5±0.5	e PM1	70%-80%	≥1μm	≥90	F8	Light yellow
RT-GF09	Double side：100m	80士5	≤120	2.5±0.5	e PM1	80%-90%	≥1μm	≥95	F9	Light yellow
