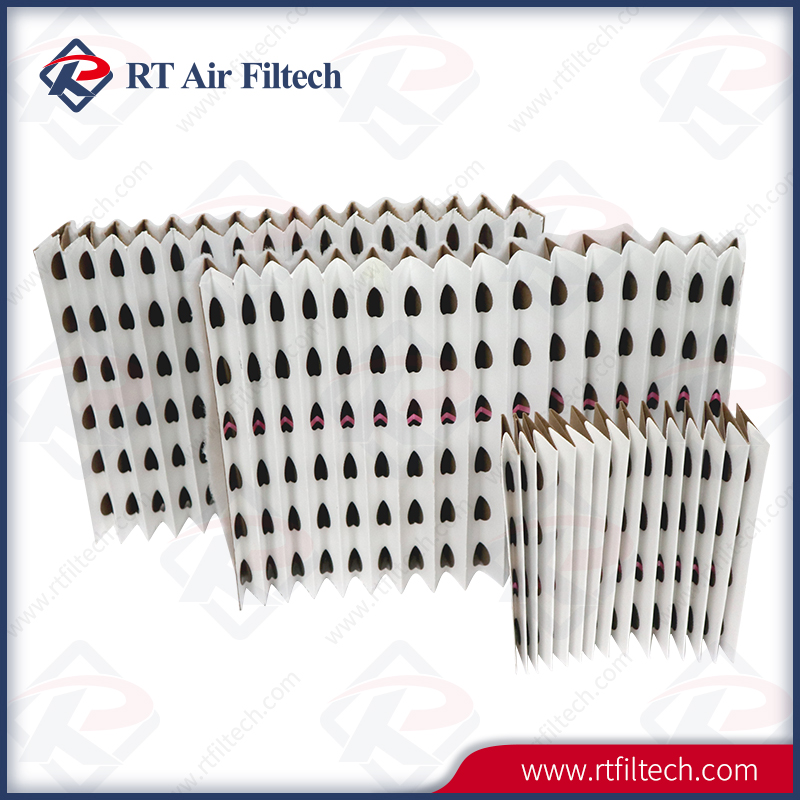

V-Type Paint Filter Paper is designed to capture paint and lacquer overspray. They are constituted by two layers of cardboard, perforated and pleated, glued together in such a way to create “V”shaped separation cells.
Features
Whirlpool airflow guide design, high filtering efficiency;
V-shaped depth bearing, high dust holding capacity and low pressure;
Simple installation;
Simply recycle paint particles and dust particles;
Reproducible paper, environmental and high efficiency;
Long service life and low replacement frequency;

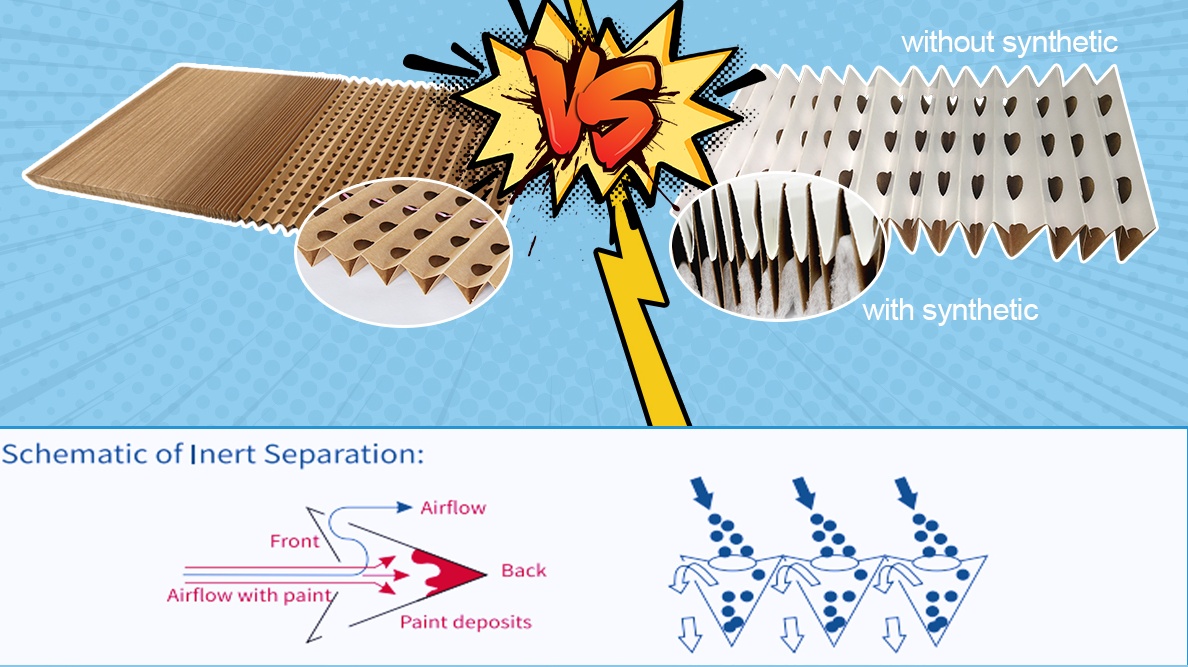

Filter Type:
With Synthetic and without Synthetic
Our standard size：
10 meters in length, 0.75/0.9/1.0 m in width.
Other size can be customized.
1. Optimum inertia separation: the front wall prevents bounce back of overspray while the back wall captures the overspray in deep holding pockets outside the airflow resulting in continuous exhaust.
2. Constant airflow in the booth: the airflow is evenly distributed over the whole extraction surface of the booth and the airflow stays constant during the loading phase. Polyester, mesh, and fiberglass face load causing the airflow to deviate toward the peripheral areas of the exhaust wall.
3. Large capture areas without reducing the air passage: unlike other pockets, V-Type Paint Filter Paper retain overspray in pockets out of the airstream. This principle maintains low static pressure and results in a larger holding capacity.
4. Long lifetime: the long lifetime of pleated cardboard separators comes from its large inner cell volume available for the paint articles within the cell. This type of filter lasts 3-5 times longer than other filter medias.
It has been designed to capture a high level of paint (or lacquer, varnish, dust, etc) whilst maintaining air flow due to the principle of inertial separation. Its "V" shape, and the offset filter holes, ensure that the paint is held between the layers of filter whilst the air can continue to flow. Therefore, the spray booth airflow can continue, with little or no reduction, until the filter is full at which point it should be changed.
Choose RT's V-Type Paint Filter Paper, it will be a good assistant in your painting booth room.
